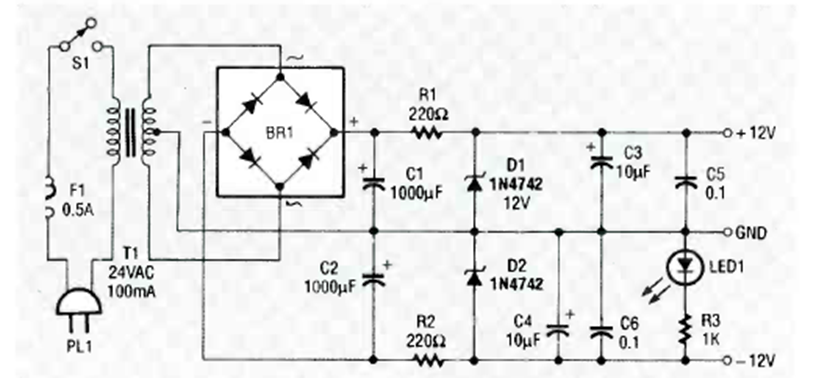

This circuit with current up to 100 mA according to the transformer was found in the Radio Electronics magazine of October 1991. The regulation is done directly by the zeners.
| Clique na imagem para ampliar |
Symmetrical 12 V power supply (CB25402E)
