Resistance Matcher (CB25896E)

Details
Written by: Newton C. Braga

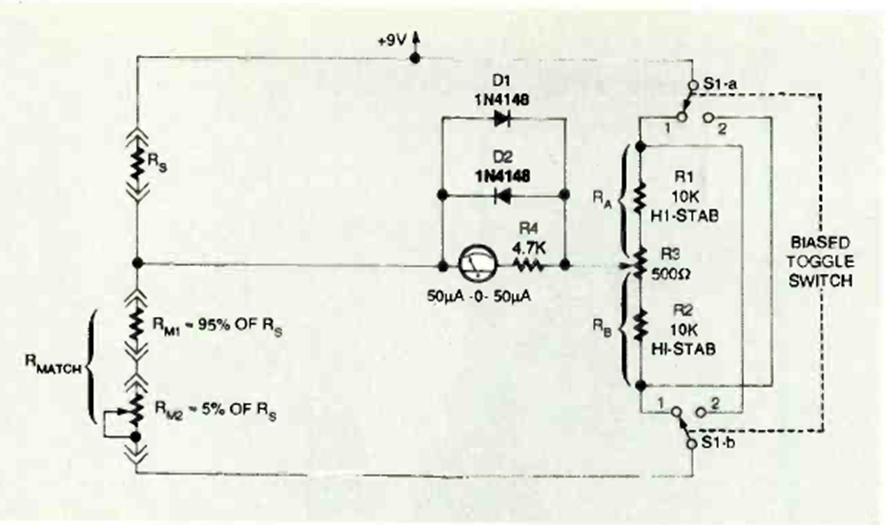

The purpose of this circuit is to find two resistors with very close values ​​for critical projects. The circuit was found in the November 1995 issue of Electronics Now magazine.
