CIR25402S CB25378E (CB25378E)

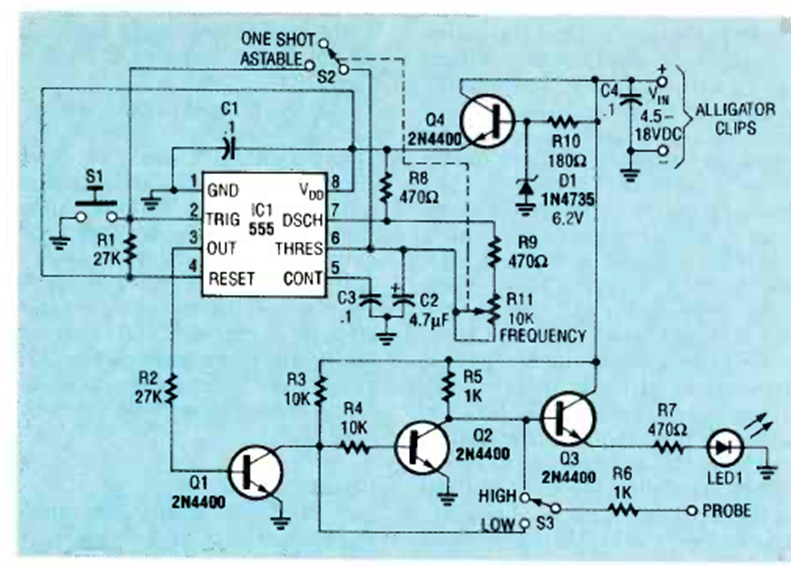

This test instrument was found in the April 1991 issue of Radio Electronics magazine. The circuit has good signal strength.
