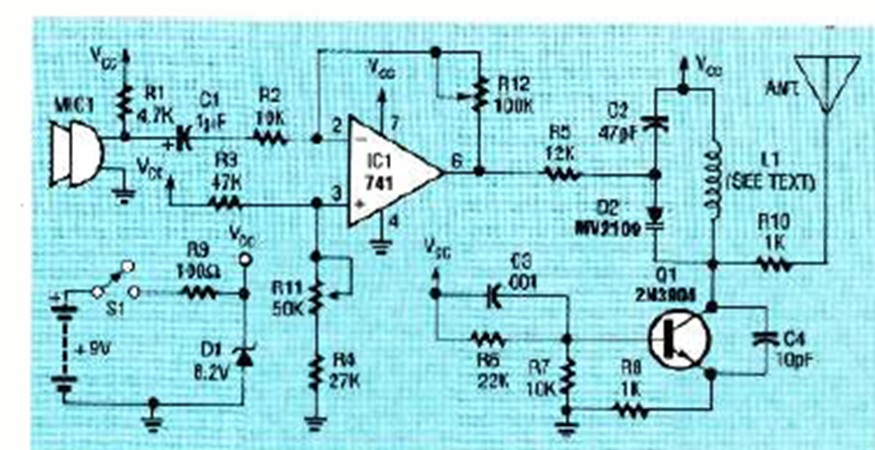

Designed to operate with a video camera, this small transmitter was found in the February 1993 issue of Radio Electronics magazine. The microphone is electret.
