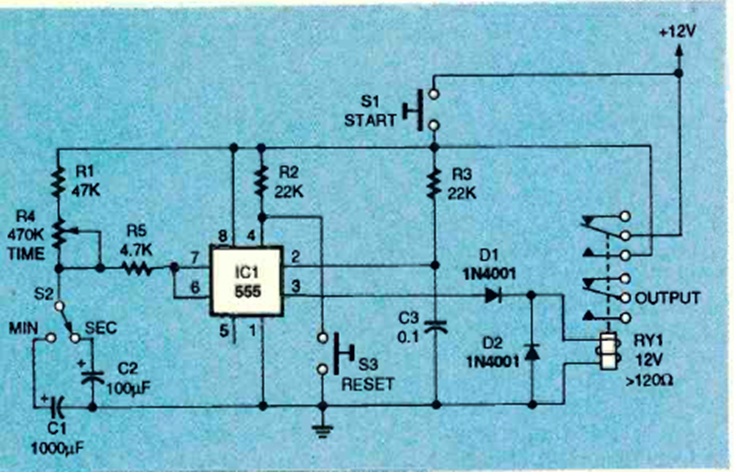

This 10-minute timer was found in the July 1994 Radio Electronics magazine. The relay must be sensitive to the supply voltage used. The capacitors determine time ranges.
| Clique na imagem para ampliar |
Two-Range Timer with 555 (CB25746E)
- Details
- Written by: Newton C. Braga
