Gain control with 741 and JFET (CB25572E)

Details
Written by: Newton C. Braga

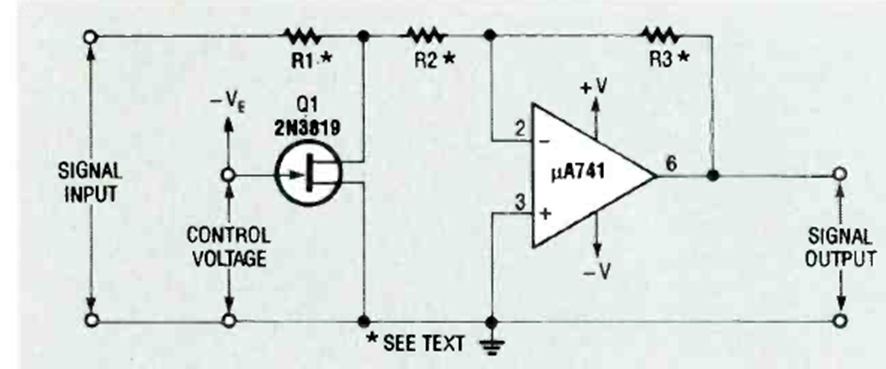

This circuit was found in the April 1993 Electronics Now magazine. With it, it is possible to control the gain of an operational circuit with a JFET.
