Second Order Speech Filter (CB25820E)

Details
Written by: Newton C. Braga

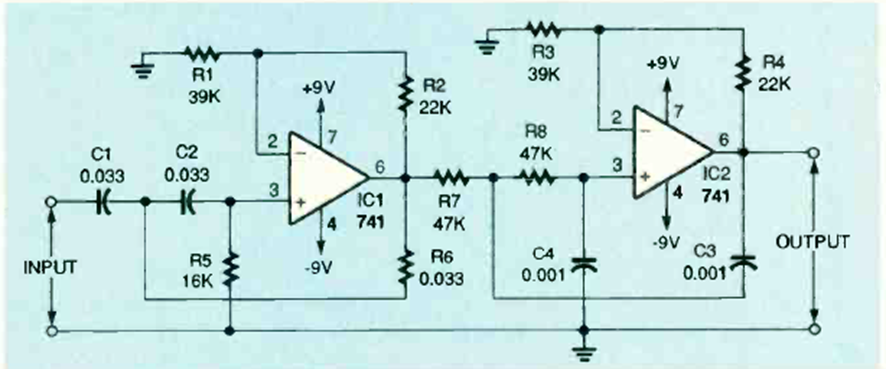

This filter for frequencies from 300 Hz to 3.4 kHz was found in the February 1995 Radio Electronics magazine. Other operational amplifiers can be experimented, and the source must be dual.
