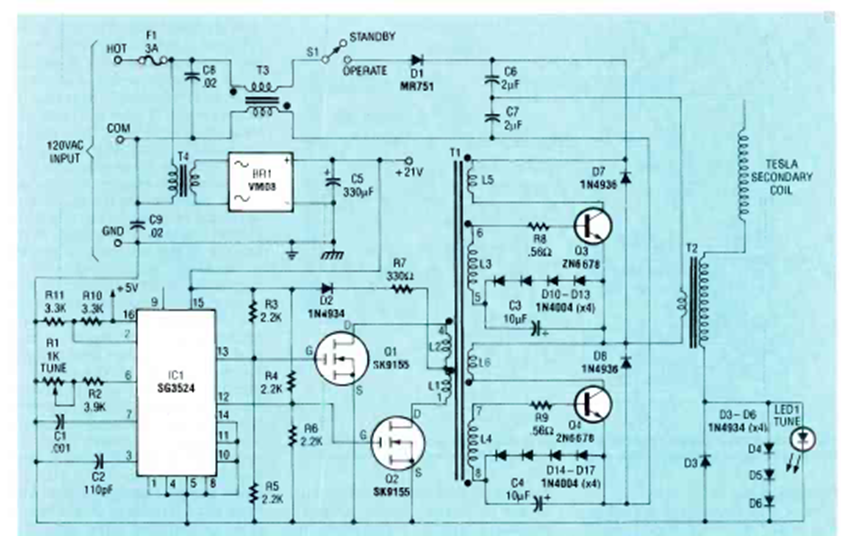

In an article describing the assembly of a Tesla coil, the September 1991 issue of Radio Electronics magazine gives this circuit. The coil data is in the article, and the use of MOSFET guarantees excellent performance.
| Clique na imagem para ampliar |
