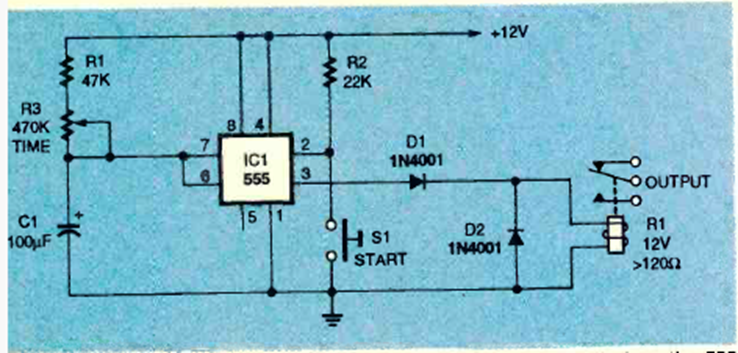

This basic relay configuration was found in a July 1994 Electronics Now. The relay is supposed to be sensitive, and the times are changed by changing C1.
| Clique na imagem para ampliar |
6 to 60 Second Timer 555 (CB25745E)
- Details
- Written by: Newton C. Braga
