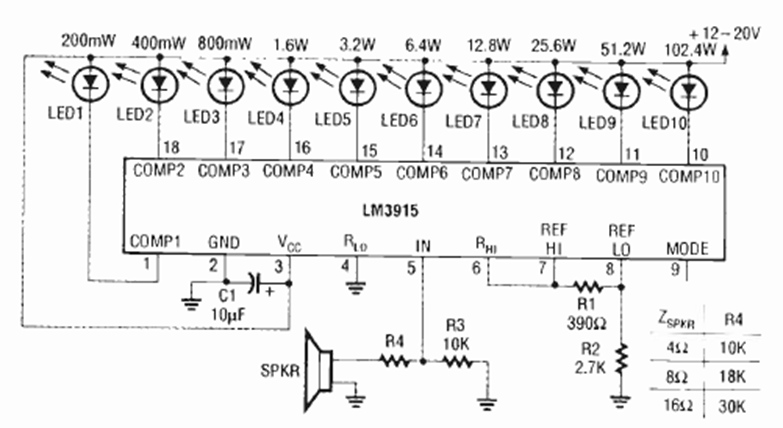

Using a small speaker as a microphone, this 10-LED circuit was found in the March 1992 issue of Radio Electronics magazine. Note in the table the values of R4 according to the speaker impedance.
| Clique na imagem para ampliar |
LM3914 Audio Level Meter (CB25459E)
- Details
- Written by: Newton C. Braga
