Rumble and Scratch Filter (CB25601

Details
Written by: Newton C. Braga

E)

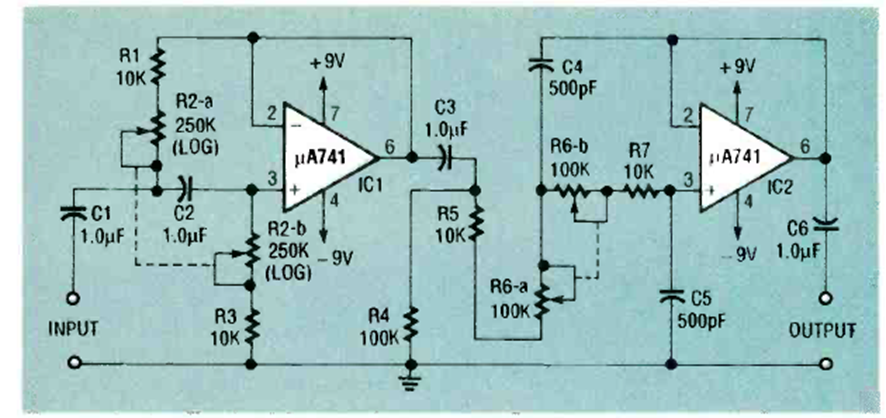

This audio filter was found in the August 1993 issue of Radio Electronics magazine. It cuts low and high frequencies corresponding to rumble and scratch noises that occur on turntables.




| Clique na imagem para ampliar |
