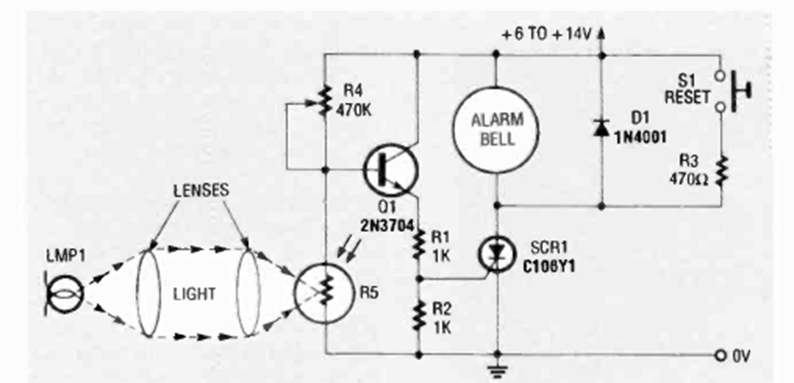

We found this circuit in the July 1992 issue of Radio Electronics magazine. An optical system produces the light beam that, when interrupted, triggers the alarm. The sensitivity is adjusted by R4.
| Clique na imagem para ampliar |
Light Beam Alarm (CB25487E)
