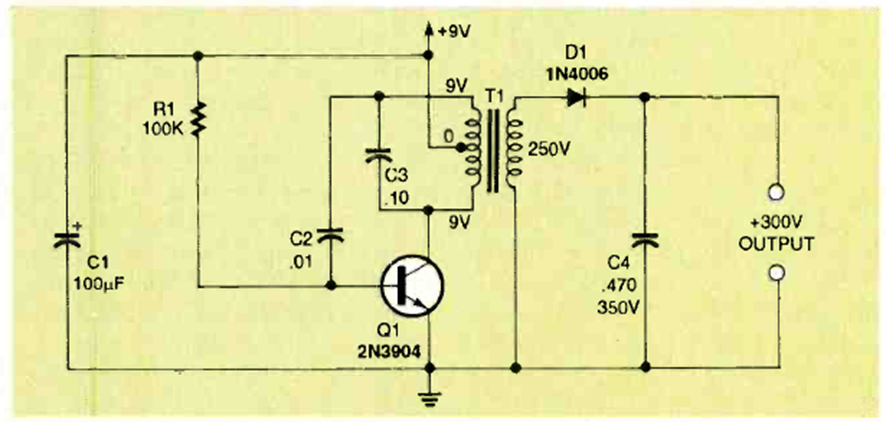

Of course, the current is extremely small, but a voltage of 300 V can be obtained from 9 V of a battery. The circuit is from an Electronics Now of May 1994. C1 adjusts the operating point.
| Clique na imagem para ampliar |
Micro High Voltage Generator (CB25720E)
- Details
- Written by: Newton C. Braga
