4046 Alarm Clock (CB25768E)

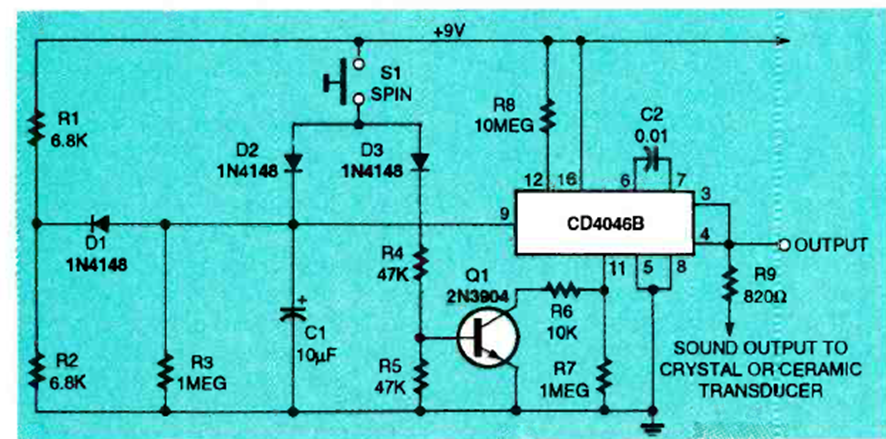

This circuit uses a PLL4046 oscillator to excite a piezoelectric ceramic. The circuit is from an October 1994 Electronics Now magazine.

| Clique na imagem para ampliar |

Transistor static switch (CB9287E)
This static switch circuit or solid-state contactor was found in a Motorola documentation from...
Switched Stepdown Regulator (CB8693E)
Found in RCA documentation from the 1960s, this 60 V regulator has a 100 V input and a current of 1...
0 to 30 V Regulator (CB15500E)
One of the problems with common 3-terminal regulators is that the internal reference, normally 1.25 V,...
