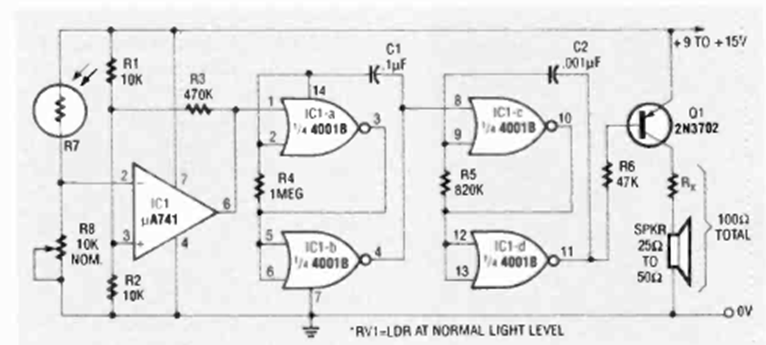

This circuit was found in the July 1992 issue of Radio Electronics magazine. The circuit has a sensitivity adjustment, and the intermittent tone can be changed by changing the capacitors.
| Clique na imagem para ampliar |
Precision Light Alarm with 741 and CMOS (CB25486E)
- Details
- Written by: Newton C. Braga
