Stereo VU Meter (CB25368E)

Details
Written by: Newton C. Braga

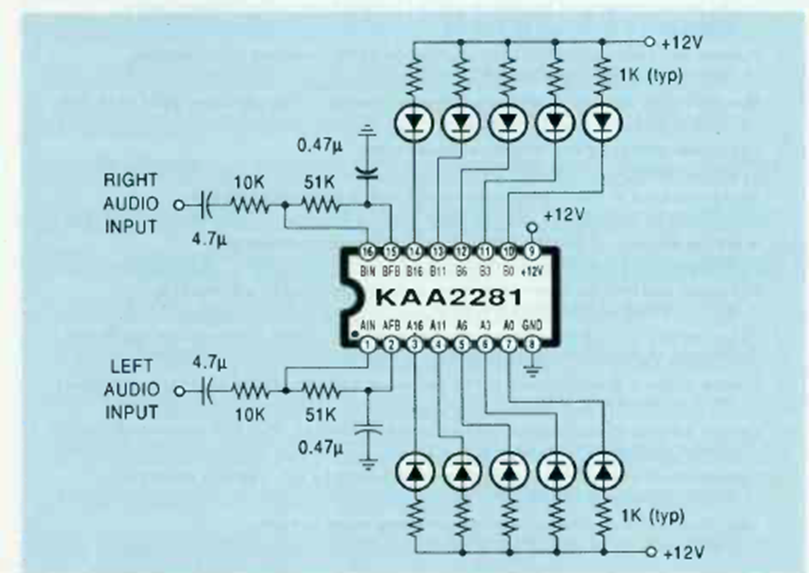

This two-channel bargraph meter uses a single KAA2281 integrated circuit. Found in the January 1991 issue of Radio Electronics magazine. The stereo circuit drives 2 scales of 5 LEDs.
