Negative Voltage Generator 555 (CB25546E)

Details
Written by: Newton C. Braga

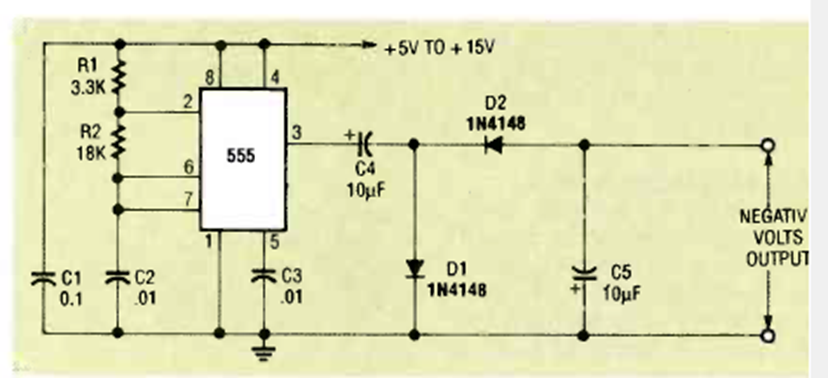

This polarity inverter circuit for voltages down to about -12 V was found in the December 1992 issue of Radio Electronics magazine. The current is a few mA.




| Clique na imagem para ampliar |
