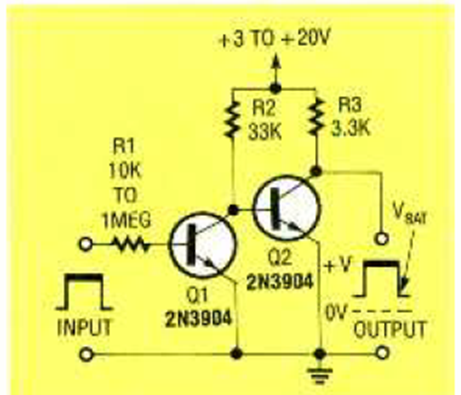

Bipolar Digital Amplifier (CB25627E)

This high-gain digital amplifier uses general-purpose transistors. The supply voltage is logic dependent. The input resistance is high.
