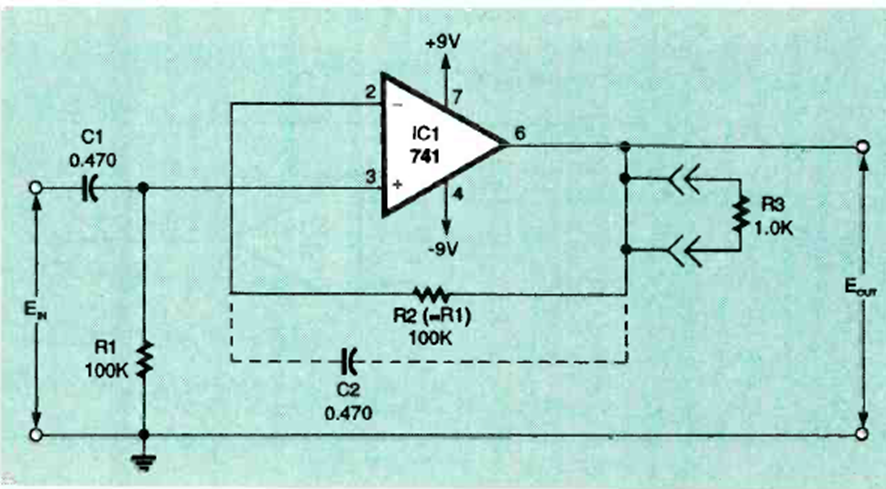

AC Voltage Follower 741 (CB25792E)

This circuit was found in the January 1995 Electronics Now magazine. Its configuration is valid for other operating systems. The source must be dual.

| Clique na imagem para ampliar |

Differential instrumentation amplifier (CB9841E)
This instrumentation amplifier with differential inputs was found in documentation from the 90s....
Wattmeter (CB23581E)
This circuit is from a Radio Electronics magazine from December 1958. The indicator instrument is analog...
DC to DC converter (CB8749E)
Found in a 90s 303 Circuits, this circuit has an output power of 100 mW. L1 consists of 890 turns...
