9 to 330V Converter (CB25840E)

Details
Written by: Newton C. Braga

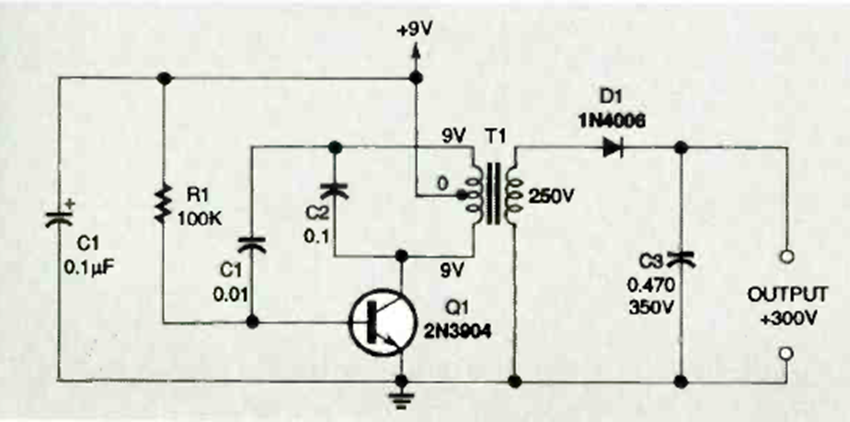

This voltage inverter uses a small transformer. The circuit was found in the April 1995 issue of Electronics Now magazine. The output current is very low.
