a Wheatstone Bridge with Audio (CB25890E)

Details
Written by: Newton C. Braga

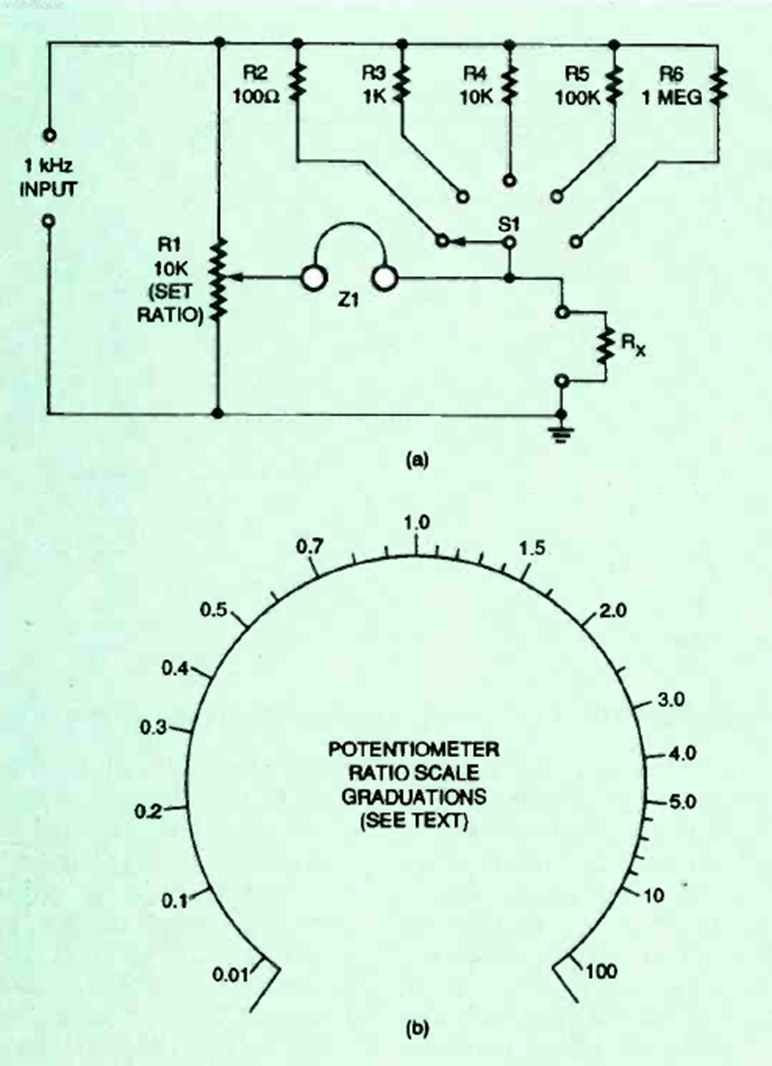

This sensitive 5-band circuit was found in a September 1995 issue of Electronics Now magazine. The headphones, for greater sensitivity, should be high impedance.
