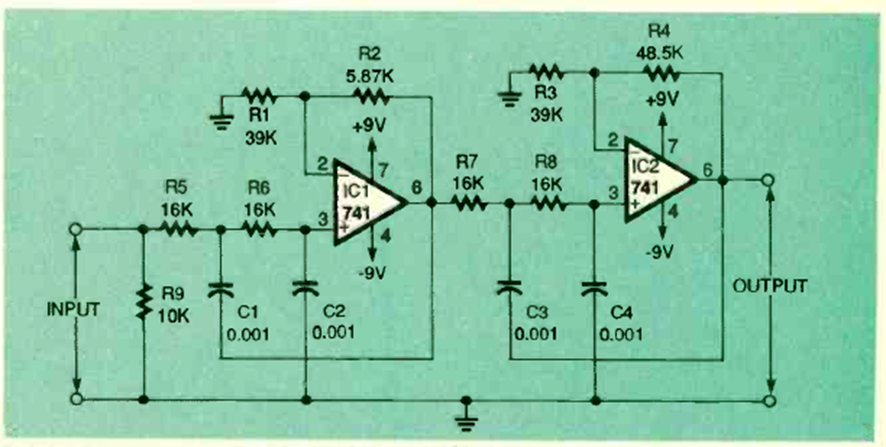

This 10 kHz filter was obtained from an article in Electronics Now magazine in February 1995. The power supply is dual and other equivalent operating conditions can be used.
| Clique na imagem para ampliar |
Fourth-Order Low Pass Filter (CB25816E)
- Details
- Written by: Newton C. Braga
