Panic and Fire Alarm (CB25950E)

Details
Written by: Newton C. Braga

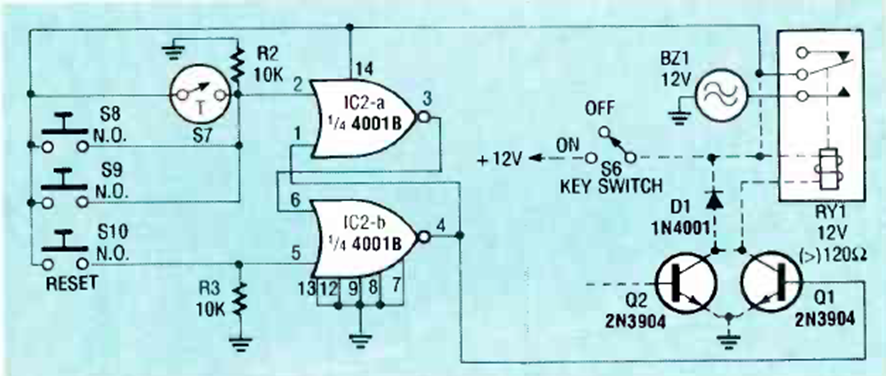

This circuit uses a CMOS integrated circuit as a basic element and can be combined with the previous circuits. The circuit is from a Radio Electronics from May 1990.
