Sound of Phasor 4046 (CB25766E)

Details
Written by: Newton C. Braga

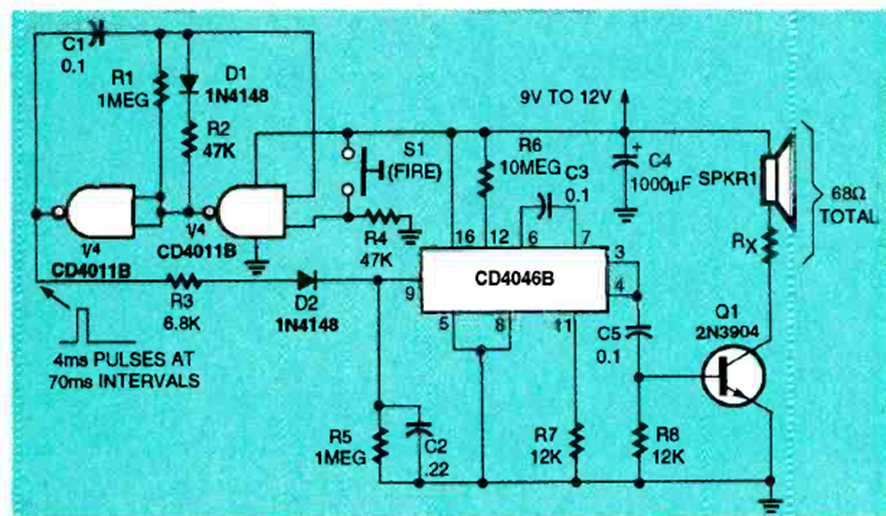

Using a 4046 PLL, which is not very common nowadays, this circuit was found in the October 1994 issue of Electronics Now magazine. The power is provided by the transistor and is small in this case.
