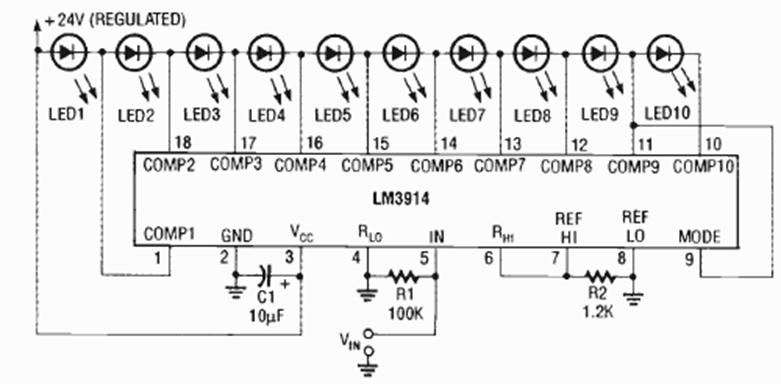

Low-consumption LM3914 moving point voltmeter (CB25455E)

With a single LED on the scale, this voltmeter has low consumption. The circuit was found in the March 1992 issue of Radio Electronics magazine.
