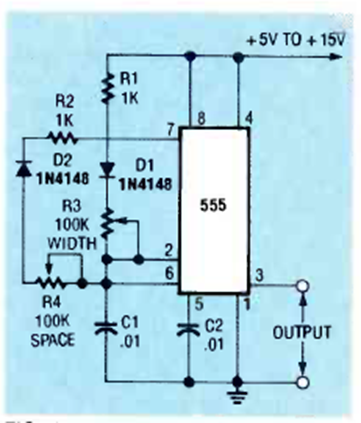

Astable 555 with two potentiometers (CB25510E)
- Details
- Written by: Newton C. Braga
This circuit has both frequency and duty cycle control. We found it in the October 1992 Radio Electronics magazine. Capacitor C1 determines the frequency range.
