100 Hz Second Order High Pass Filter (CB25815E)

Details
Written by: Newton C. Braga

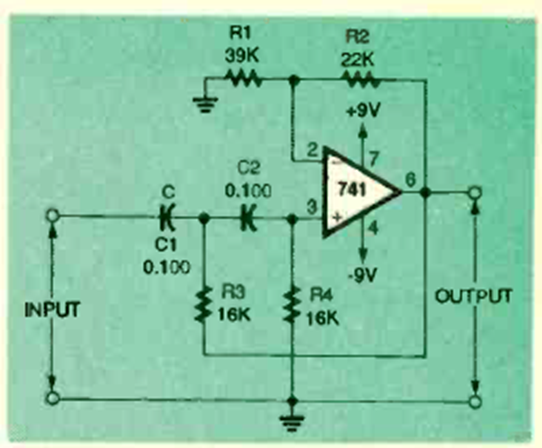

This filter with the 741 op amp was found in the February 1995 Electronics Now magazine. The power supply must be dual.
