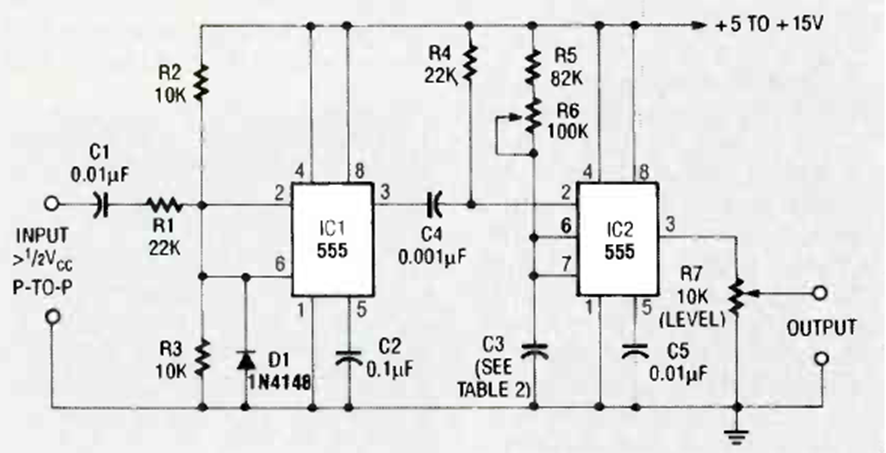

We found this circuit in the September 1992 issue of Radio Electronics magazine. It can be triggered by any signal above ½ Vcc, where Vcc is the supply voltage.
| Clique na imagem para ampliar |
Universal 555 Triggering Pulse Generator (CB25506E)
- Details
- Written by: Newton C. Braga
