CMOS Latched Alarm (CB25948E)

Details: Written by: Newton C. Braga

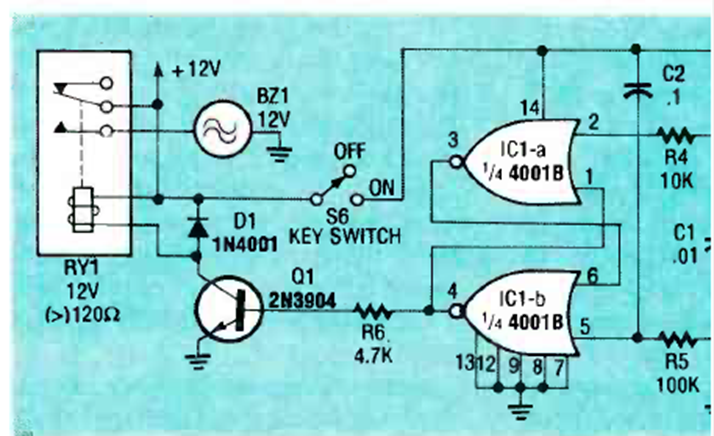

This simple latching alarm circuit using CMOS gates was found in the May 1990 Radio Electronics magazine. The supply voltage is dependent on the relay.
