Composite bridge amplifier (CB6986E)

Details
Written by: Newton C. Braga

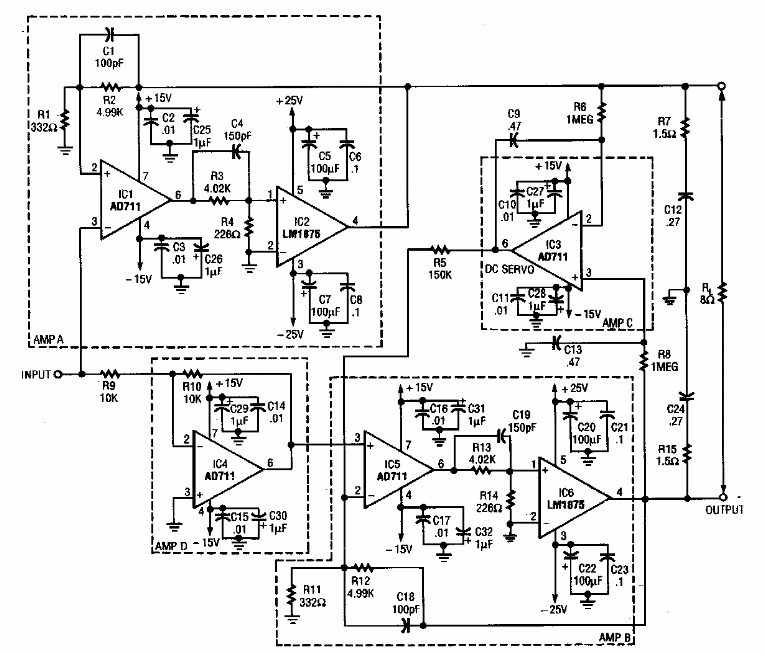

     Found in Electronics Now from the 1980s, this amplifier can also be seen in commercial amplifiers of the time. The integrated used is uncommon nowadays. The power is 33 W.




| Clique na imagem para ampliar |
