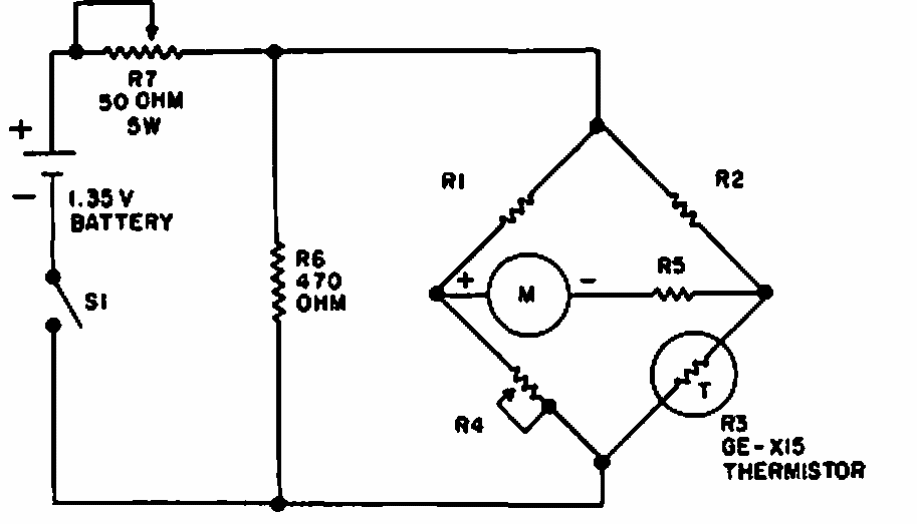

This circuit is from a 1965 General Electric Hobby manual. The circuit uses only passive components and the components (resistors) have the same order of magnitude as the employed thermistor.
| Clique na imagem para ampliar |
Thermometer using thermistor (CB6407E)
- Details
- Written by: Newton C. Braga
