Modulated Light Receiver (CB6160E)

Details
Written by: Newton C. Braga

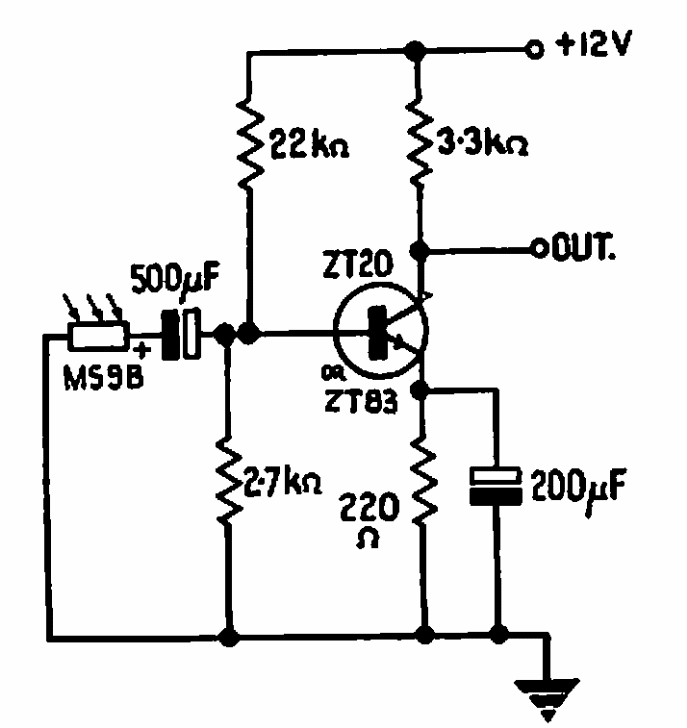

    This circuit was originally intended for reading movie soundtracks. The circuit is from 1967 and was found in an English publication. The sensor is semiconductor type.




| Clique na imagem para ampliar |
