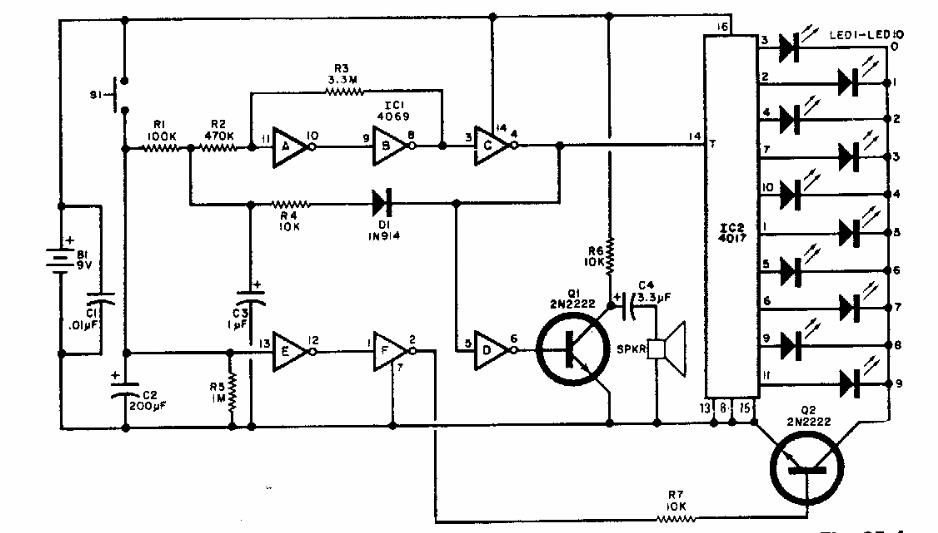

Found in a Popular Elecronics from the 90s, this circuit appears in other versions in this section and on the website. The circuit draws one of 10 LEDs and has a sound effect produced during the draw.
| Clique na imagem para ampliar |
Fortune Wheel (CB7004E)
- Details
- Written by: Newton C. Braga
