Coded Infrared Transmitter (CB6371E)

Details
Written by: Newton C. Braga

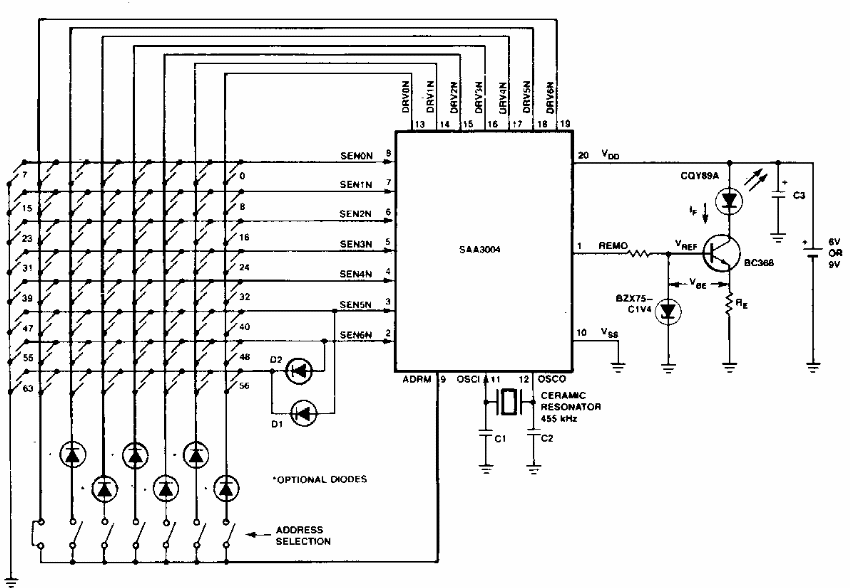

     This circuit was found in a 1980s Signetics documentation. The integrated circuit is from the era. The circuit enables coded matrix control via a toggle switch.
