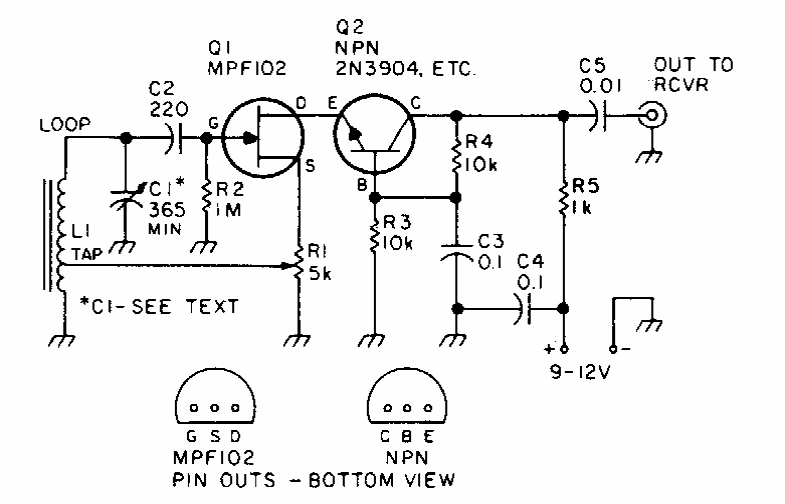

We have several circuits like this in this section and on the website. This is from a magazine 73 for radio amateurs from the United States, in an 80's edition. Equivalent transistors can be used. The circuit operates from medium waves up to 3 MHz.
