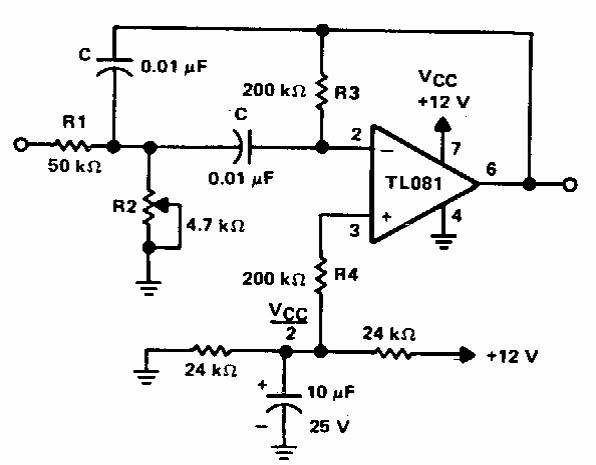

This circuit was found in Texas Instruments documentation from the 1980s. The circuit has a Q less than 10 and along with the diagram formulas for component calculation. The values shown in the diagram are for 800 Hz.
Active Band Pass Filter (CB6247E)
