Silent Alarm (CB6444E)

Details
Written by: Newton C. Braga

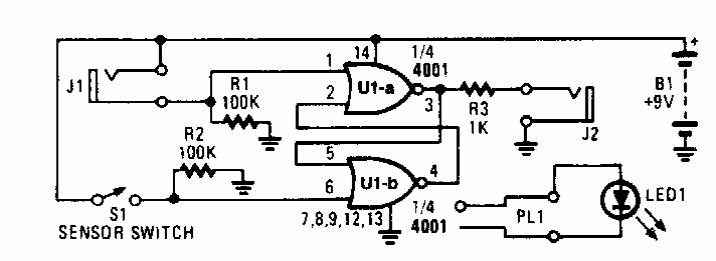

    This circuit simply triggers an LED when the sensor is activated. The circuit is from a Popular Electronics of the 90s.
