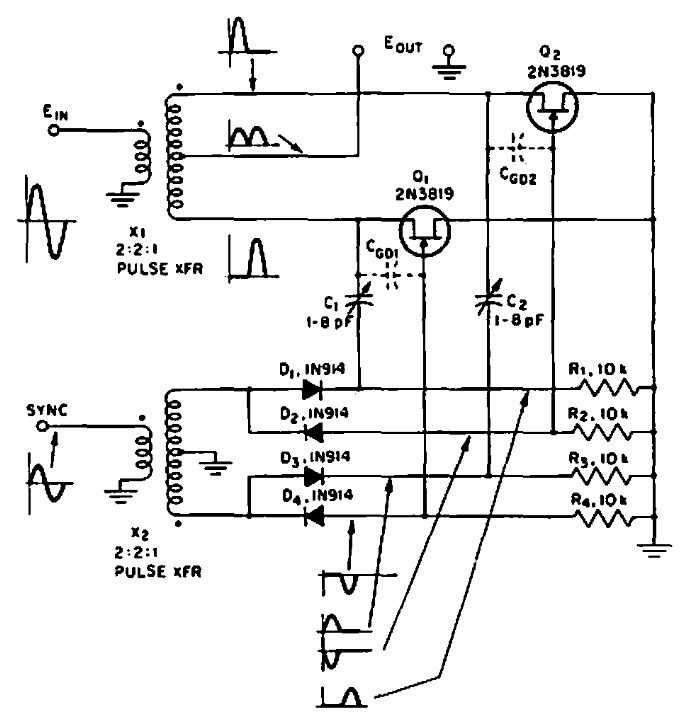

This circuit was obtained from an American documentation from 1976. The circuit has a dynamic range of 100 kHz. FETs may be replaced by current equivalents.
| Clique na imagem para ampliar |
Synchronized Detector (CB6671E)
- Details
- Written by: Newton C. Braga
