400 Hz x 360 W inverter (CB7183E)

Details
Written by: Newton C. Braga

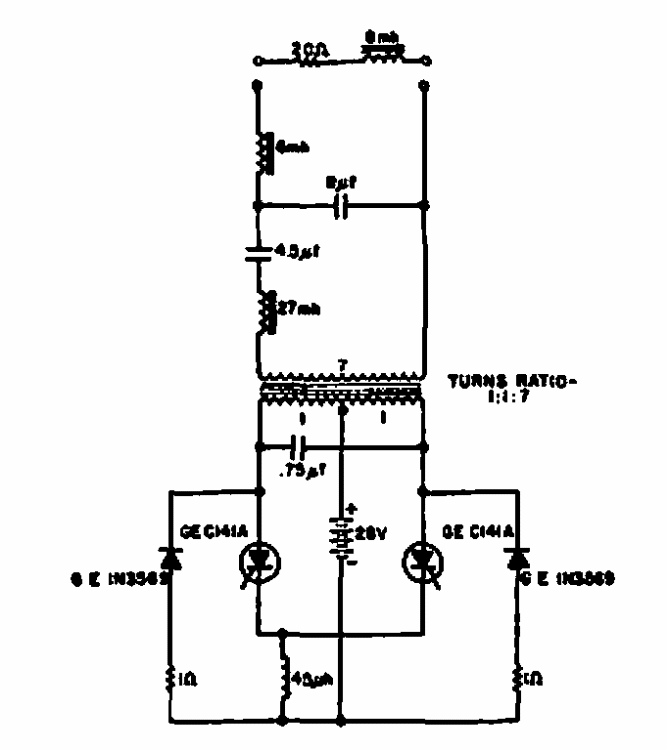

     Found in a 1967 publication by General Electric, this SCR circuit generates voltages of 120 VAC at the output. The circuit has an input voltage of 28 V.
