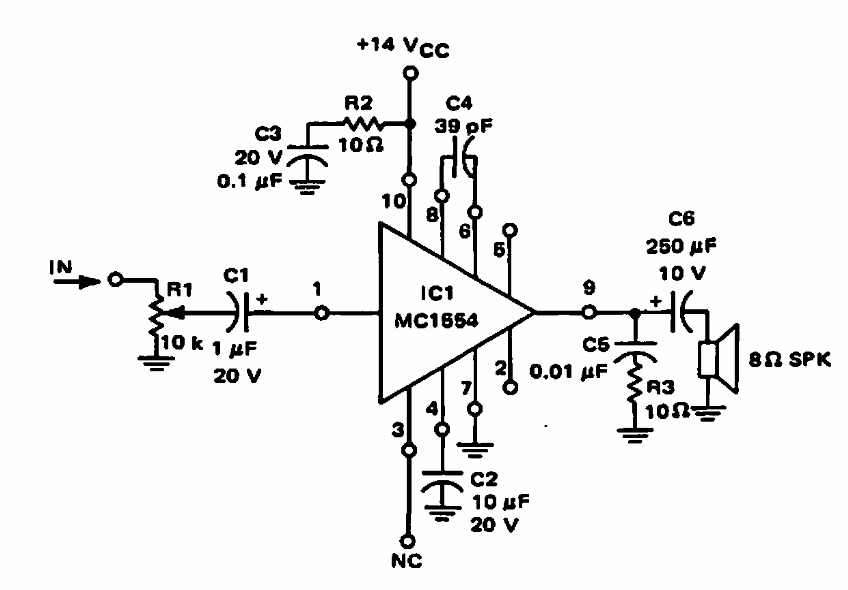

Using a Motorola MC1684 integrated circuit this 1968 amplifier provides 1 W to a 8 ohm load. The response ranges from 20 to 20 000 Hz and the distortion is only 1% at 1 kHz.
| Clique na imagem para ampliar |
1 W Amplifier (CB6297E)
- Details
- Written by: Newton C. Braga
