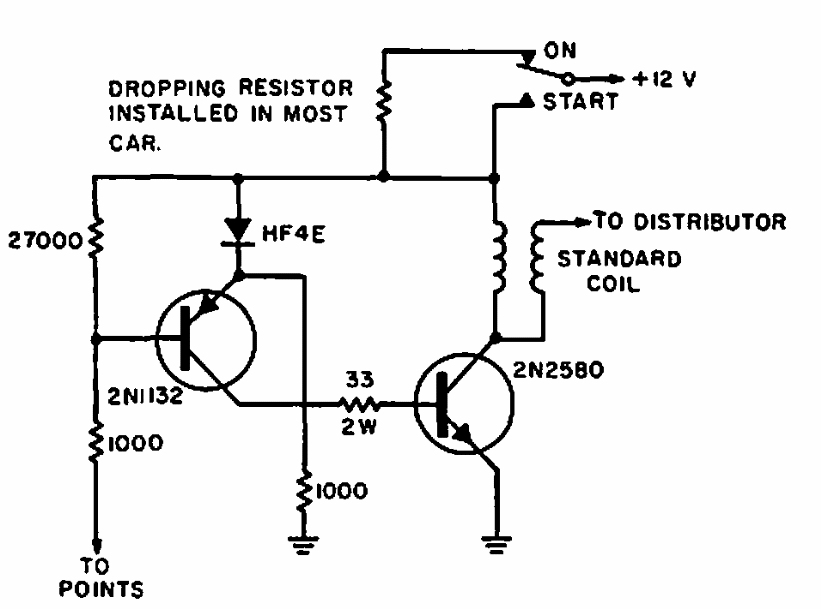

This circuit was found in a 1964 Electronic Design. The transistors are of the time, but can be employed as modern equivalents. The system is for car with contact breaker.
| Clique na imagem para ampliar |
Common coil assisted ignition (CB6384E)
