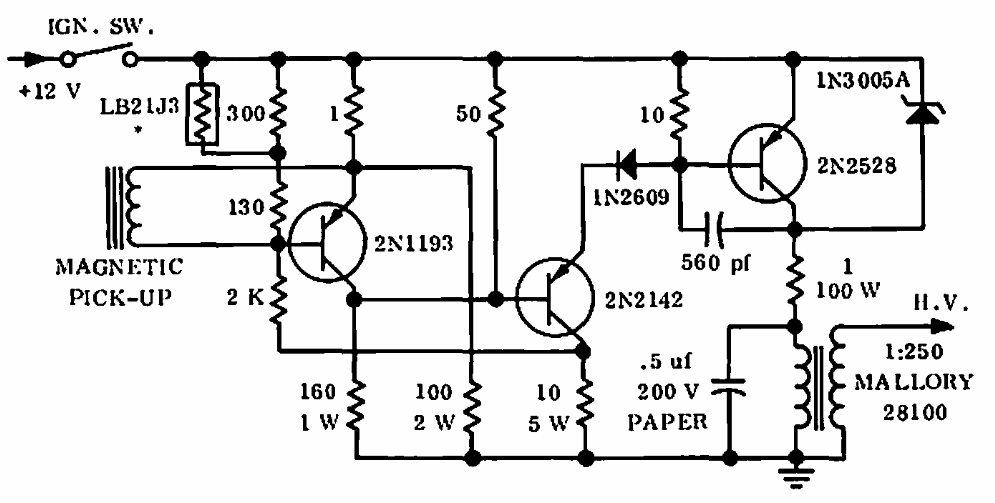

Contactless ignition (CB6381E)

Details
Written by: Newton C. Braga



     This circuit is from a 1965 Motorola documentation. The transistors are of the time as is the uninformed magnetic sensor.
