Alarm with the 555 (CB6777E)

Details
Written by: Newton C. Braga

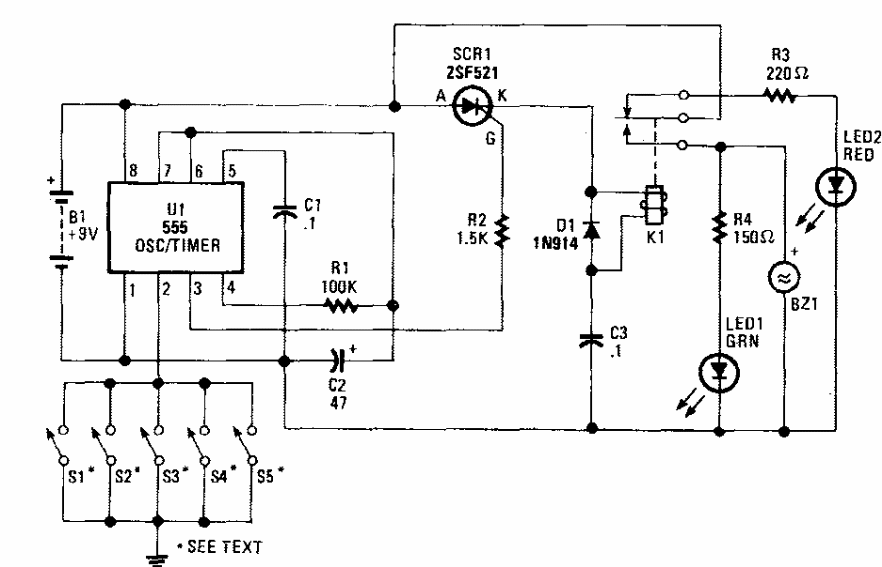

    Found in an old Popular Electronics this circuit is still current. The SCR can be of the 106 series and the relay according to the voltage used in the supply. The voltage can be 12 V.




| Clique na imagem para ampliar |
