Programmed gain amplifier (CB7266E)

Details
Written by: Newton C. Braga

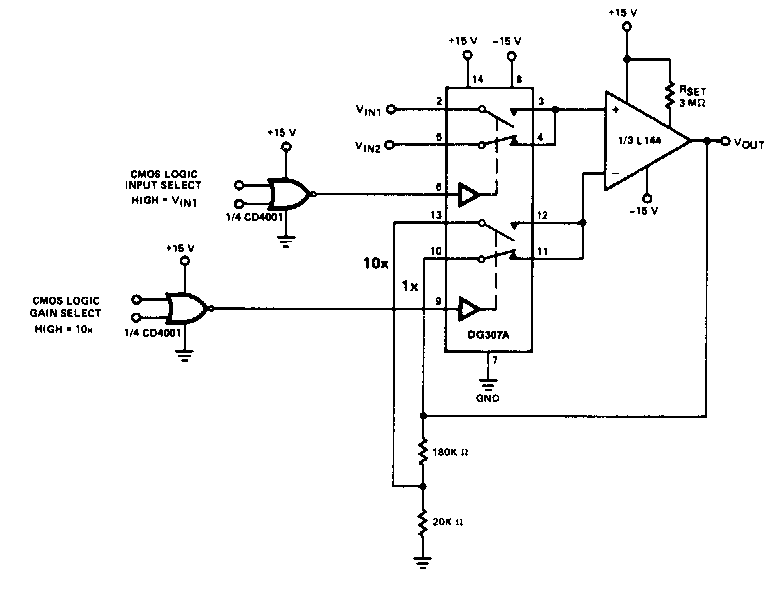

    Suggested by Siliconix in documentation from the 90s, this amplifier has its gain digitally selected. The components are from that time, not easy to find today.
