White noise generator (CB6998E)

Details
Written by: Newton C. Braga

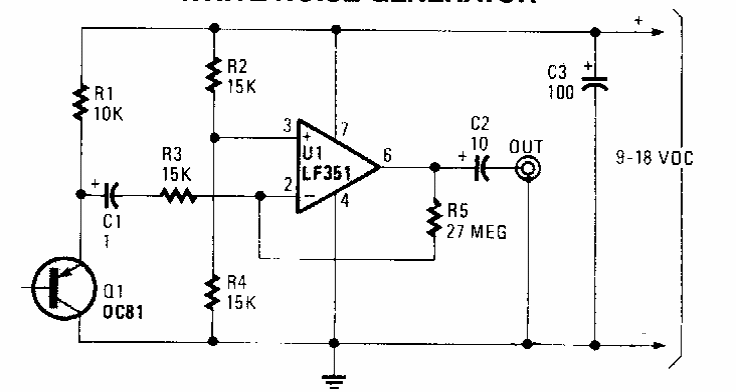

     We found this circuit on a Radio Electronics. Similar configurations can be found in this section. The operational amplifier can be of almost any type.




| Clique na imagem para ampliar |
