Water alarm with lock (CB6957E)

Details
Written by: Newton C. Braga

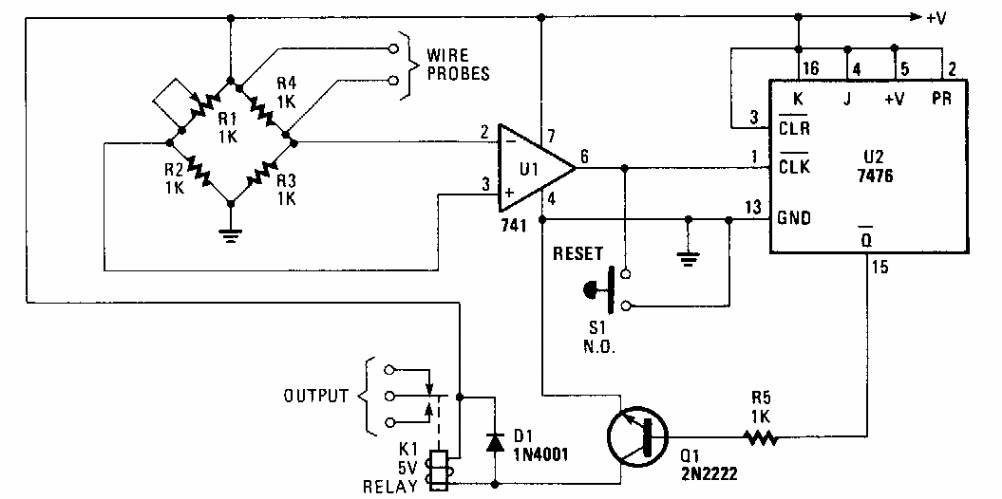

     Published in an old Popular Electronics, this circuit makes use of components that are still current. The circuit must be powered with 9 V and eventually adapted to function as a shield.




| Clique na imagem para ampliar |
