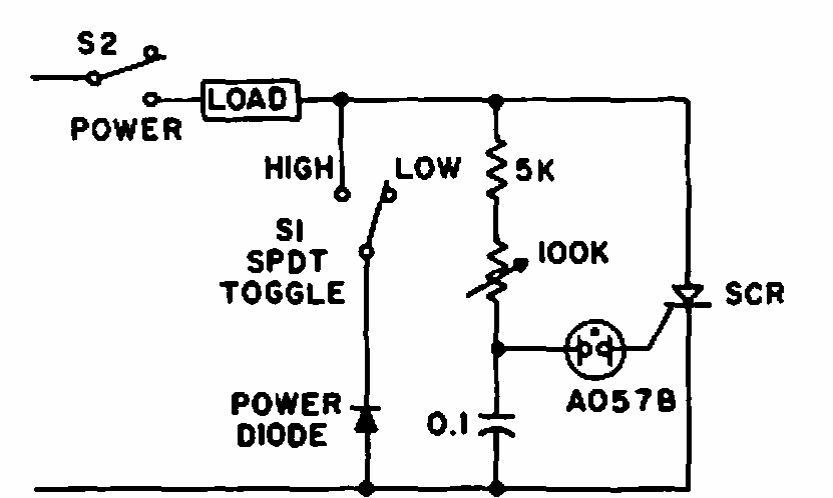

This circuit was obtained from ancient American documentation based on the application of neon lamps. The SCR is according to the controlled load. It really is a power control.
| Clique na imagem para ampliar |
