Burglar alarm (CB6774E)

Details
Written by: Newton C. Braga

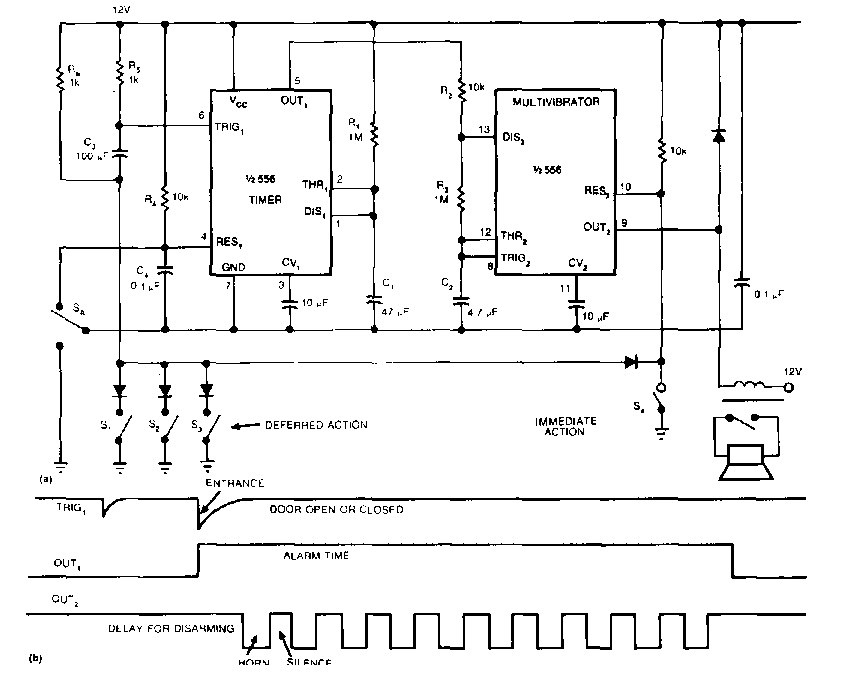

    This circuit was found in a 90’s EDN. The components used are still common and the sensors can have their quantity increased. The supply voltage is according to the relay.






| Clique na imagem para ampliar |
