3 kW control (CB7190E)

Details
Written by: Newton C. Braga

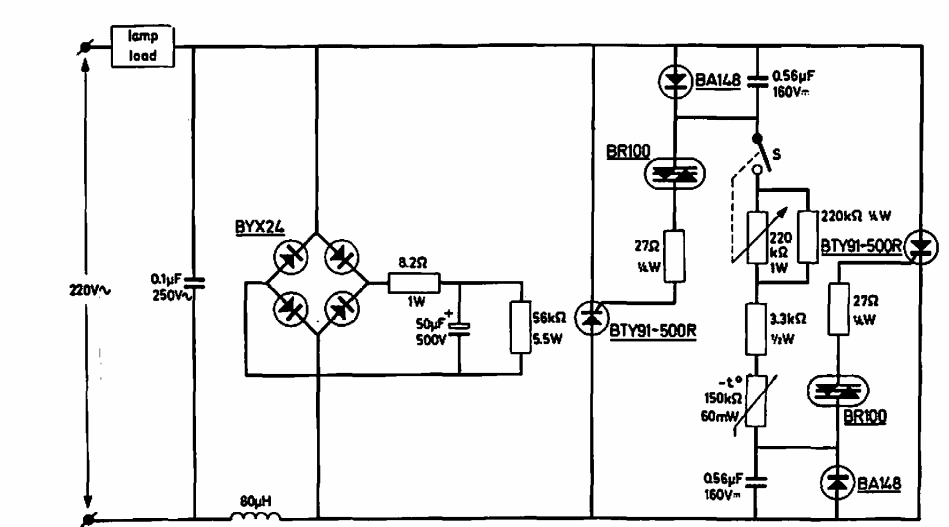

     This circuit for antiparallel control of thyristors was found in a Philips publication from 1967. The circuit uses components of the time, and the power components must be mounted on heat sinks.
