Dimmer without flicker (CB7218E)

Details
Written by: Newton C. Braga

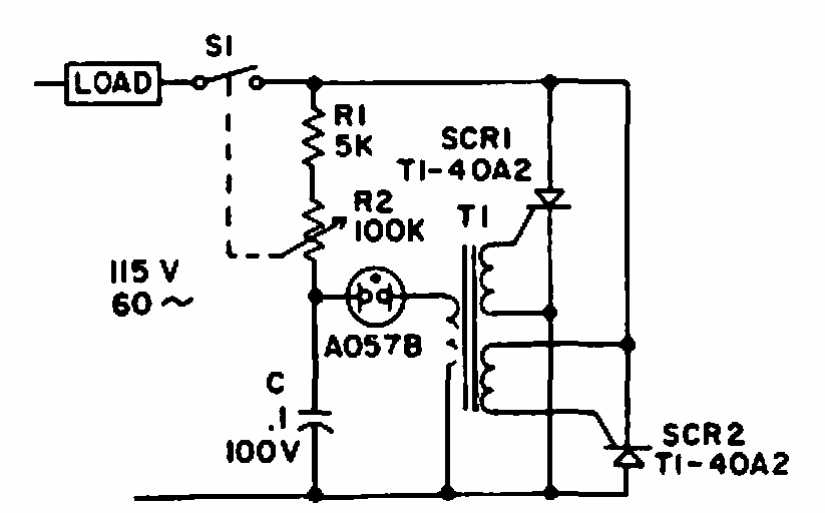

    This circuit was found in Signalite documentation from the 1960s. The circuit uses a pulse transformer whose characteristics have not been provided.
